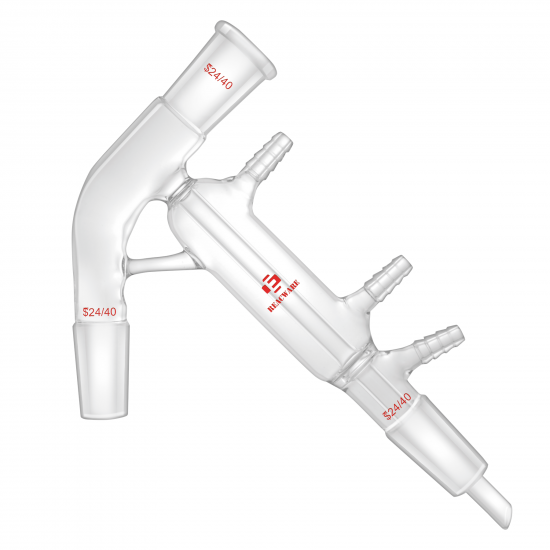

REACWARE Short Path Distillation Adapter Condenser,SPD,24/40

REACWARE Short Path Distillation Adapter Condenser,SPD,24/40
New
Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
REACWARE Short Path Distillation Adapter Condenser,SPD,24/40

Designed for use with small quantities where hold up between the flask
and receiver must be kept to a minimum. The thermometer bulb and stem
serve as column packing. Upper hose connections are for cooling lines
while the lower connection is for vacuum.

it is 100mm length for the Liebig condenser
it is 200mm Length for the arm
it is 45° between the condenser and the main body

If you need any other size or other Ground joints,please contact with us

Be Made From G3.3 Borosilicate Glass

Annealing Point ------560℃

Linear Coefficient of Expansion------ 32×10-7/℃

Softening Point------820℃

If you need any Customized laboratory glassware or the instrument,

Please contact with us


Be Made From G3.3 Borosilicate Glass

Annealing Point ------560℃

Linear Coefficient of Expansion------ 32×10-7/℃

Softening Point------820℃

Write a review

Note: HTML is not translated!
Bad Good
Captcha
  • Stock: In Stock
  • Model: 1053-1032-00
190 samples sold
Based on 0 reviews. - Write a review
$43.00
Ex Tax: $43.00
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Request more info
Size Chart









Tags: Distilling Heads , Short Path

We also recommend

Quickview
Distillation Receivers 150mL
Distillation Receivers 150mL
The 135º angle between the center line of the condenser and the receiver tubes allows the distillate to fall directly into the receiver tubes. This re..
$54.65
Ex Tax:$54.65
Add to Cart
Add to Wish List Compare this Product
Quickview
Distilling Heads,Short Path
Distilling Heads,Short Path
Designed for use with small quantities where hold up between the flask and receiver must be kept to a minimum. The thermometer bulb and stem serve as ..
$52.27
Ex Tax:$52.27
Add to Cart
Add to Wish List Compare this Product
Quickview

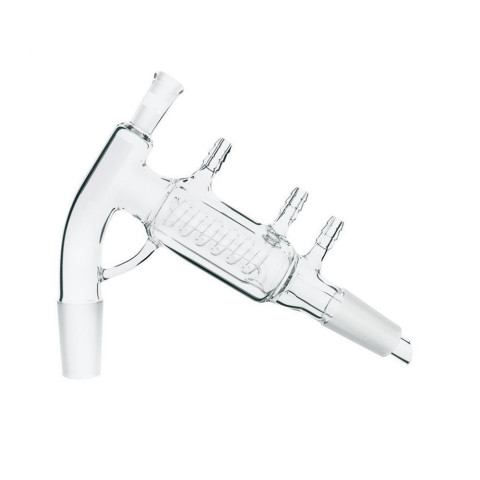

Distilling Heads,Short Path,Improved
Distilling Heads,Short Path,Improved
with the condenser being a combination of a cold coil and Liebig. Water flows into hose connection “A” through the coil and exits the outer jacket thr..
$73.66
Ex Tax:$73.66
Add to Cart
Add to Wish List Compare this Product
Quickview

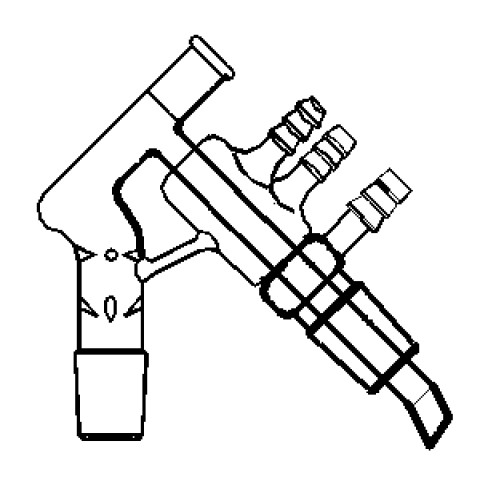

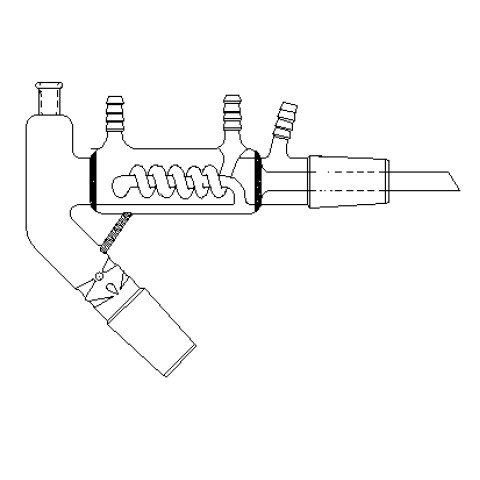

Distilling Heads,Short Path,Improved,with Vigreux
